SCOTT T TRANSFORMER

Important Notice



Scott T Transformers are not suitable for the following applications:

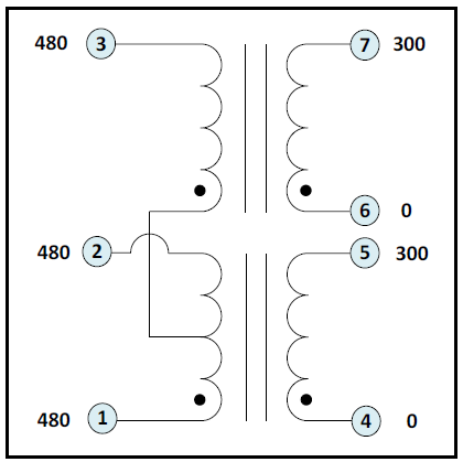

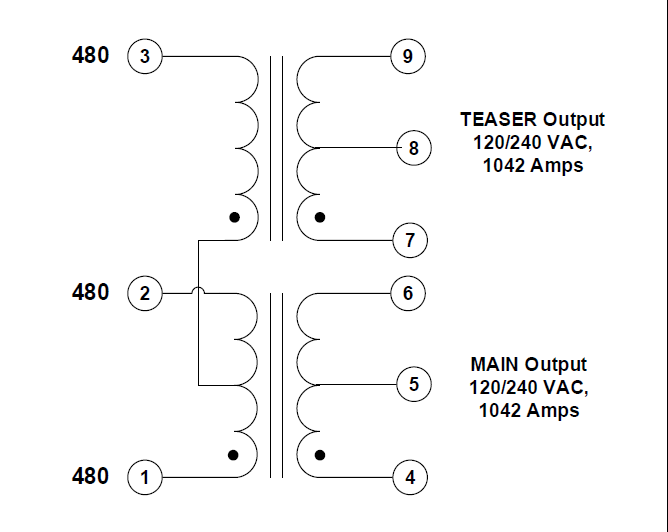

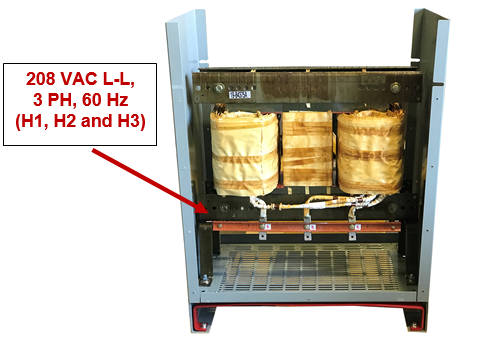

The schematic of a Scott T Transformer is shown below. The Scott T works in the reverse configuration as well. For example if input is (X1, X2) and (Y1, Y2), then output will be (H1, H2, H3).

Capture

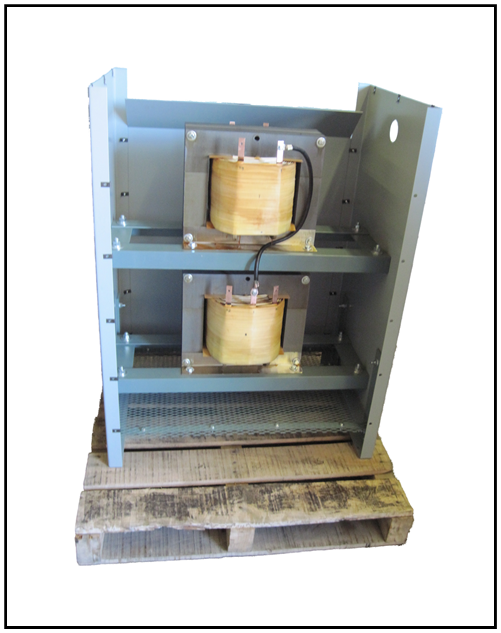

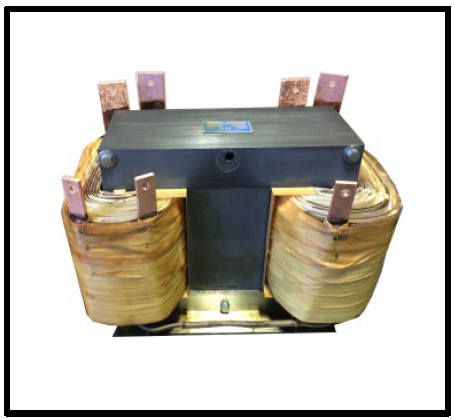

A Scott T Transformer is built with two single phase transformers of equal power rating. The MAIN and TEASER sections are enclosed in a floor mount enclosure. The MAIN is installed in the bottom section and the TEASER is installed on the top section. A jumper is used to connect the MAIN and the TEASER.

The MAIN and TEASER can be placed side by side in separate enclosures as well and connected with a jumper.

L/C Magnetics can build Scott T Transformers with power rating from 1 KVA to 500 KVA. All units are custom designed and built to customer specifications.

Start your custom order today!

Content is presented in two formats,  PHOTO FORMAT and TABLE FORMAT. The PHOTO FORMAT is shown first. The TABLE FORMAT is shown after the PHOTO FORMAT.

 PHOTO FORMAT – SCOTT T TRANSFORMERS

Scott T Transformer 0.25 KVA, Input: 208 VAC, 1 Amps, 3 PH Output (Main): 120 VAC, 1 Amp, 1 PH Output (Teaser): 120 VAC, 1 Amp, 1 PH, P/N 19067

Scott T Transformer 0.25 KVA, Input: 208 VAC, 1 Amps, 3 PH Output (Main): 120 VAC, 1 Amp, 1 PH Output (Teaser): 120 VAC, 1 Amp, 1 PH, P/N 19067



Scott T Transformer 45 KVA, MAIN Input: 2400 VAC, 1 PH TEASER Input: 2400 VAC, 1 PH Output: 240 VAC L – L, 3 PH, P/N 19029N

Scott T Transformer 45 KVA, MAIN Input: 2400 VAC, 1 PH TEASER Input: 2400 VAC, 1 PH Output: 240 VAC L – L, 3 PH, P/N 19029N



Scott Configuration Transformer, 5 KVA Input: 240 VAC, 3 PH Output (Main): 120 VAC, 1 PH Output (Teaser): 120 VAC, 1 PH, P/N 18713N

Scott Configuration Transformer, 5 KVA Input: 240 VAC, 3 PH Output (Main): 120 VAC, 1 PH Output (Teaser): 120 VAC, 1 PH, P/N 18713N



Scott Connected Transformer, 10 KVA Input: 200 VAC, 3 PH Output (Main): 230 VAC, 1 PH Output (Teaser): 230 VAC, 1 PH P/N 18552N

Scott Connected Transformer, 10 KVA Input: 200 VAC, 3 PH Output (Main): 230 VAC, 1 PH Output (Teaser): 230 VAC, 1 PH P/N 18552N



Scott Connection Transformer, 12 KVA Input: 480 VAC, 3 PH Output (Main): 120/126/132/138 VAC, 1 PH Output (Teaser): 120/126/132/138 VAC, 1 PH, P/N 18686N

Scott Connection Transformer, 12 KVA Input: 480 VAC, 3 PH Output (Main): 120/126/132/138 VAC, 1 PH Output (Teaser): 120/126/132/138 VAC, 1 PH, P/N 18686N



Scott T Transformer, 20 KVA Input: 400 VAC, 3 PH Output (Main): 230 VAC, 1 PH Output (Teaser): 230 VAC, 1 PH, P/N 18683N

Scott T Transformer, 20 KVA Input: 400 VAC, 3 PH Output (Main): 230 VAC, 1 PH Output (Teaser): 230 VAC, 1 PH, P/N 18683N



SCOTT T TRANSFORMER, 24 KVA, P/N 19306N

SCOTT T TRANSFORMER, 24 KVA, P/N 19306N



Scott T Transformer with a Tap Switch, 25 KVA Input: 440 VAC, 3 PH Output (Main): 32/45/53/62 VAC, 1 PH Output (Teaser): 32/45/53/62 VAC, 1 PH P/N 18568N

Scott T Transformer with a Tap Switch, 25 KVA Input: 440 VAC, 3 PH Output (Main): 32/45/53/62 VAC, 1 PH Output (Teaser): 32/45/53/62 VAC, 1 PH P/N 18568N



Scott T Transformer, 27 KVA, 60 Hz, MAIN Output (X1, X2): 44 VAC, 307 Amps, 13.5 KVA TEASER Output (Y1, Y2): 44 VAC, P/N 19147N

Scott T Transformer, 27 KVA, 60 Hz, MAIN Output (X1, X2): 44 VAC, 307 Amps, 13.5 KVA TEASER Output (Y1, Y2): 44 VAC, P/N 19147N



30 KVA Scott T Transformer Input: 480 VAC, 3 PH Output (Main): 208 VAC, 1 PH Output (Teaser): 208 VAC, 1 PH, P/N 18726N

30 KVA Scott T Transformer Input: 480 VAC, 3 PH Output (Main): 208 VAC, 1 PH Output (Teaser): 208 VAC, 1 PH, P/N 18726N



Scott T Transformer with a Center Tap, 40 KVA Input: 450 VAC, 3 PH Output (Main): 120/240 VAC, 1 PH Output (Teaser): 120/240 VAC, 1 PH, P/N 18168N

Scott T Transformer with a Center Tap, 40 KVA Input: 450 VAC, 3 PH Output (Main): 120/240 VAC, 1 PH Output (Teaser): 120/240 VAC, 1 PH, P/N 18168N



50 KVA Scott T Transformer Input: 480 VAC, 3 PH Output (Main): 240 VAC, 1 PH Output (Teaser): 240 VAC, 1 PH, P/N 18768N

50 KVA Scott T Transformer Input: 480 VAC, 3 PH Output (Main): 240 VAC, 1 PH Output (Teaser): 240 VAC, 1 PH, P/N 18768N



High Current Scott T Transformer, 90 KVA Input: 380 VAC, 3 PH, Output (Main): 32 VAC, 1406 A, 1 PH Output (Teaser): 32 VAC, 1406 A, 1 PH, P/N 18123

High Current Scott T Transformer, 90 KVA Input: 380 VAC, 3 PH, Output (Main): 32 VAC, 1406 A, 1 PH Output (Teaser): 32 VAC, 1406 A, 1 PH, P/N 18123



Oil Filled Scott T Transformer, 45 KVA, P MAIN Input: 2300 VAC, 1 PH TEASER Input: 2300 VAC, 1 PH Output: 12470 VAC L – L, 3 PH, P/N 6267L

Oil Filled Scott T Transformer, 45 KVA, P MAIN Input: 2300 VAC, 1 PH TEASER Input: 2300 VAC, 1 PH Output: 12470 VAC L – L, 3 PH, P/N 6267L



Start your custom order today!

The table below can be viewed in ascending or descending order for all categories such as P/N, Input (VAC), Output (VAC), Output (Amps), KVA ot Type. Click the Part Number to view more details and additional tap information. Only one tap detail is shown in the table.

TABLE FORMAT – SCOTT T TRANSFORMERS

P/NInput (VAC)Output (VAC)Output (Amps)KVAType
1906720812010.25Scott T
19029N24002409.64Scott T
18713N24012020.85Scott T
18552N2002302210Scott T
18686N4801385012Scott T
18683N4002304420Scott T
19306N4802085824Scott T
18568N4406220025Scott T
19147N4804430727Scott T
18726N48020872.1130Scott T
18168N4501208340Scott T
18768N48024010450Scott T
1821338032140690Scott T
6267L23001247021500Scott T

All our Scott T transformers are custom built to order. To discuss your specific application, please call us toll free at (800) 595-7096, or send us an email at info@LCMAGNETICS.COM.
