TAP SWITCH TRANSFORMER

Transformers have taps on the primary side and taps on the secondary side. The change of taps can be performed manually or using a tap switch. L/C Magnetics can integrate a Tap Switch with an appropriate Single Phase, Three Phase or Scott T transformer.

Click the photos for additional details. If these Tap Switch Transformers do not meet your exact requirements, we will be glad to offer a redesigned unit.

Start your custom order today!

Content is presented in two formats,  PHOTO FORMAT and TABLE FORMAT. The PHOTO FORMAT is shown first. The TABLE FORMAT is shown after the PHOTO FORMAT.

PHOTO FORMAT – TAP SWITCH TRANSFORMERS

SINGLE PHASE TAP SWITCH TRANSFORMERS

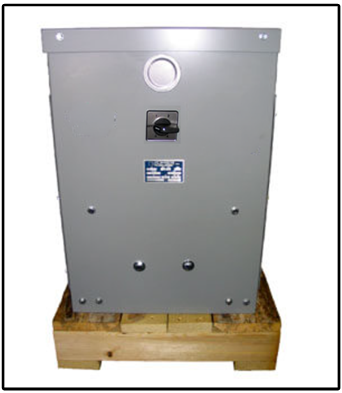

Tap Switch Transformer 4 KVA, 1 PH, 50 Hz, P/N 19065TS

Tap Switch Transformer 4 KVA, 1 PH, 50 Hz, P/N 19065TS



Single Phase Tap Switch Transformer 10 KVA, 1 PH, 50/60 Hz, P/N 18058N

Single Phase Tap Switch Transformer 10 KVA, 1 PH, 50/60 Hz, P/N 18058N



Tap Switch Transformer 12 KVA, 1 PH, 60 Hz, P/N 18897TS

Tap Switch Transformer 12 KVA, 1 PH, 60 Hz, P/N 18897TS



Single Phase Tap Switch Transformer 15 KVA, 1 PH, 60 Hz, P/N 18589T

Single Phase Tap Switch Transformer 15 KVA, 1 PH, 60 Hz, P/N 18589T



THREE PHASE TAP SWITCH TRANSFORMERS

Three Phase Tap Switch Transformer 50 KVA, 3 PH, 50 Hz, P/N 18868TN

Three Phase Tap Switch Transformer 50 KVA, 3 PH, 50 Hz, P/N 18868TN



Three Phase Tap Switch Transformer 100 KVA, 3 PH, 60 Hz, P/N 18701N

Three Phase Tap Switch Transformer 100 KVA, 3 PH, 60 Hz, P/N 18701N



Tap Switch Transformer, 20 KVA, 3 PH, 60 Hz, P/N 19150NT

Tap Switch Transformer, 20 KVA, 3 PH, 60 Hz, P/N 19150NT



SCOTT T / TAP SWITCH TRANSFORMERS

Scott T / Tap Switch Transformer 25 KVA, 3PH, 60 Hz, P/N 18568N

Scott T / Tap Switch Transformer 25 KVA, 3PH, 60 Hz, P/N 18568N



Start your custom order today!

The table below can be viewed in ascending or descending order for all categories such as P/N, Input (VAC), Output (VAC), Output (Amps), KVA ot Type. Click the Part Number to view more details and additional tap information. Only one tap detail is shown in the table.

TABLE FORMAT – TAP SWITCH TRANSFORMERS

P/NInput (VAC)Output (VAC)Output (Amps)KVAType
19065TS240240224Single Phase
18058N24024041.6710Single Phase
18897TS48015010012Single Phase
18589T19012012515Single Phase
18868TN4805757650Three Phase
18701N510440131100Three Phase
19150NT4801205020Three Phase
18568N4406220025Scott T

All our tap switch transformers are custom built to order. To discuss your specific application, please call us toll free at (800) 595-7096, or send us an email at info@LCMAGNETICS.COM.

Start your custom order today!
