WYE-WYE TRANSFORMERS

L/C Magnetics is a Wye-Wye transformer specialist. All our Wye-Wye transformers are custom built to order. These transformers are three phase. The isolation between primary and secondary is tested at 3000 VAC Hi-pot.

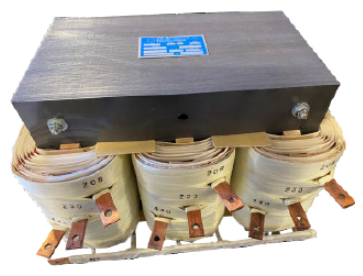

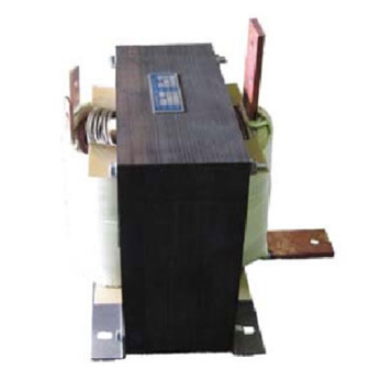

Examples of the Wye-Wye transformers (3 phase y) are shown below. Click the photos for details.

Call Now For a Free Quote

We specialize in custom designed products.

We do not specialize in "off the shelf" products.

WYE-WYE TRANSFORMERS

WYE-WYE TRANSFORMER, 2.5 KVA, PRIMARY 208 VAC, SECONDARY 24 VAC, P/N 19129

WYE-WYE TRANSFORMER, 2.5 KVA, PRIMARY 208 VAC, SECONDARY 24 VAC, P/N 19129



WYE-WYE TRANSFORMER, 3 KVA, PRIMARY 208 VAC, SECONDARY 87 VAC, P/N 19003

WYE-WYE TRANSFORMER, 3 KVA, PRIMARY 208 VAC, SECONDARY 87 VAC, P/N 19003



WYE-WYE TRANSFORMER, 3 KVA, PRIMARY 492 VAC, SECONDARY 102.5 VAC, P/N 19305A

WYE-WYE TRANSFORMER, 3 KVA, PRIMARY 492 VAC, SECONDARY 102.5 VAC, P/N 19305A



WYE-WYE TRANSFORMER, 6 KVA, PRIMARY 208 VAC, SECONDARY 208 VAC, P/N 19253N

WYE-WYE TRANSFORMER, 6 KVA, PRIMARY 208 VAC, SECONDARY 208 VAC, P/N 19253N



WYE-WYE TRANSFORMER, 7 KVA, PRIMARY 68 VAC, SECONDARY 2 VAC, P/N 18777

WYE-WYE TRANSFORMER, 7 KVA, PRIMARY 68 VAC, SECONDARY 2 VAC, P/N 18777



WYE-WYE TRANSFORMER, 10 KVA, PRIMARY 480 VAC, SECONDARY 380 VAC, P/N 19243N

WYE-WYE TRANSFORMER, 10 KVA, PRIMARY 480 VAC, SECONDARY 380 VAC, P/N 19243N



WYE-WYE TRANSFORMER, 10.35 KVA, PRIMARY 200 VAC, SECONDARY 400 VAC, P/N 19156N

WYE-WYE TRANSFORMER, 10.35 KVA, PRIMARY 200 VAC, SECONDARY 400 VAC, P/N 19156N



WYE-WYE TRANSFORMER, 20 KVA, P/N 19135

WYE-WYE TRANSFORMER, 20 KVA, P/N 19135



WYE-WYE TRANSFORMER, 25 KVA, PRIMARY 480 VAC, SECONDARY 208/240/480/575 VAC, P/N 19144

WYE-WYE TRANSFORMER, 25 KVA, PRIMARY 480 VAC, SECONDARY 208/240/480/575 VAC, P/N 19144



WYE-WYE TRANSFORMER, 25 KVA, PRIMARY 208 VAC, SECONDARY 208 VAC, P/N 18523N

WYE-WYE TRANSFORMER, 25 KVA, PRIMARY 208 VAC, SECONDARY 208 VAC, P/N 18523N



WYE-WYE TRANSFORMER, 25 KVA, PRIMARY 480 VAC, SECONDARY 208/240/380/480/575 VAC, P/N 19144A

WYE-WYE TRANSFORMER, 25 KVA, PRIMARY 480 VAC, SECONDARY 208/240/380/480/575 VAC, P/N 19144A



WYE-WYE TRANSFORMER, 26 KVA, PRIMARY 480 VAC, SECONDARY 153/192/232/272 VAC, P/N 19127N

WYE-WYE TRANSFORMER, 26 KVA, PRIMARY 480 VAC, SECONDARY 153/192/232/272 VAC, P/N 19127N



WYE-WYE TRANSFORMER, 36 KVA, PRIMARY 208 VAC, SECONDARY 208 VAC, P/N 18607N

WYE-WYE TRANSFORMER, 36 KVA, PRIMARY 208 VAC, SECONDARY 208 VAC, P/N 18607N



WYE-WYE TRANSFORMER, 100 KVA, PRIMARY 200 VAC, SECONDARY 407/693/865/1040 VAC, P/N 18846N

WYE-WYE TRANSFORMER, 100 KVA, PRIMARY 200 VAC, SECONDARY 407/693/865/1040 VAC, P/N 18846N



Start your custom order today!

The table below can be viewed in ascending or descending order for all categories such as P/N, Input (VAC), Output (VAC), Output (Amps), KVA ot Type. Click the Part Number to view more details and additional tap information. Only one tap detail is shown in the table.

TABLE FORMAT – WYE-WYE TRANSFORMERS

P/NINPUT
(VAC)
OUTPUT
(VAC)
OUTPUT
(AMPS)
KVATYPE
1912920824602.5Three Phase
1900326087103.0Three Phase
19253N208208176.0Three Phase
1877768220007.0Three Phase
192434803801510Three Phase
19156N2004001510.35Three Phase
191354808410020Three Phase
191444805751525Three Phase
18523N2082087025Three Phase
19144A4805751525Three Phase
19127N4801539826Three Phase
18607N20820810036Three Phase
18846N200407142100Three Phase

All our transformers are custom built to order. To discuss your specific application, please call us toll free at (888) 594-3216, or send us an email at info@LCMAGNETICS.COM.
